TECTRA

waterproof boxes

High quality photographic, filming or measuring equipment, due to its high value and susceptibility to damage, requires extremely safe conditions of transportation.

tectra dimm

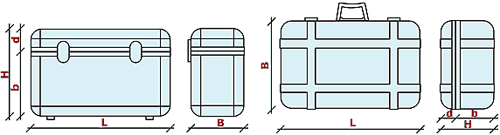

cat. no	model	dimensions [mm]								comments
		internal					external
		L	B	H	d	b	L	B	H
1239	Tectra 309	215	150	75	15	60	230	200	85	diced-foam interior
1249	Tectra 409	215	150	90	15	75	240	185	155	diced-foam interior
1269	Tectra 609	215	150	135	15	120	240	185	155	diced-foam interior
1613	Tectra 613	340	225	140	45	95	335	270	150	diced-foam interior
1416	Tectra 416	425	250	115	40	75	445	295	130	diced-foam interior
1716	Tectra 716	425	250	165	45	120	445	295	180	diced-foam interior
1916	Tectra 916	425	250	200	80	120	445	295	220	diced-foam interior
1518	Tectra 518	450	325	130	45	85	470	370	150	diced-foam interior
1718	Tectra 718	450	325	175	45	130	470	370	190	diced-foam interior
1821	Tectra 821	530	325	215	60	155	550	375	230	diced-foam interior
1822	Tectra 822 /Trolley	555	455	215	60	155	600	510	230	diced-foam interior + trolley
1827	Tectra 827 /Trolley	685	455	215	60	155	740	510	230	diced-foam interior + trolley
1825	Tectra 825	555	455	375	120	220	620	520	400	diced-foam interior

A series of cases that fulfills these requirements and ensure 100% protection to equipment during sailing voyages, air travel, walking trips in rain, in polar climate, in the tropics or in places full of dust.

The models 822 and 827 are both available in four different heights. Exact information and prices upon request.

WT 1

Table of dimensions

WT 2

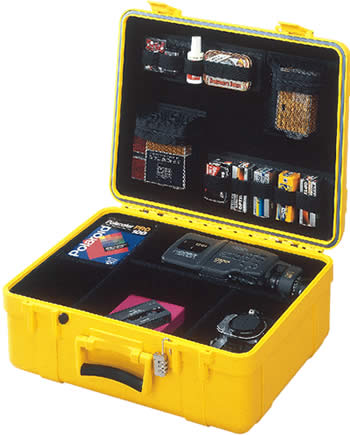

2. Interior with adjustable partition system (SE) or raster sponge

Table of dimensions

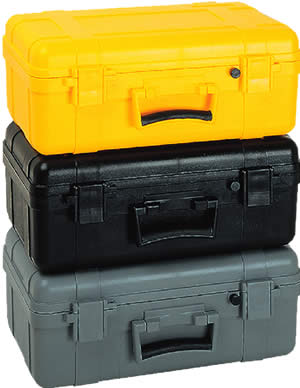

KINETIC TECTRA trunks are made from a mixture of ABS/polycarbonates using the latest spraying technology. Very strong structures, as well as internal protection ensure optimum protection for equipment when it falls, in shocks or when jostled.

WT 3

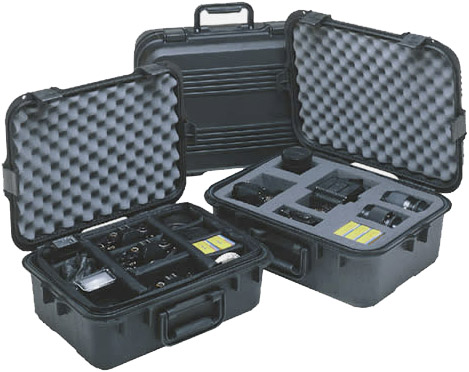

3. Kinetic Tectra ECO professionally and cheap

Table of dimensions

Used materials and the special structure of KINETIC TECTRA trunks makes the unsinkable even at maximum load.

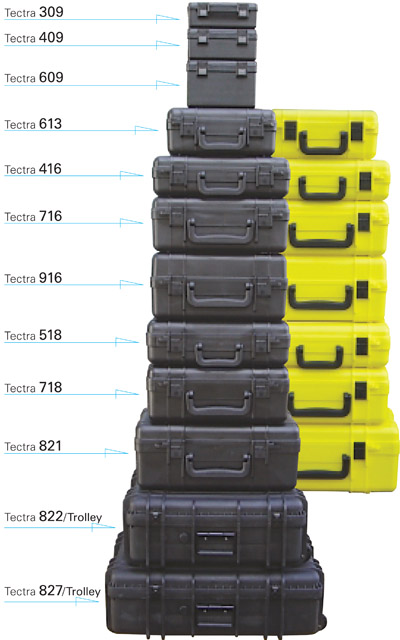

KINETIC TECTRA trunks are produced in many sizes and the practical arrangement of the interior (raster sponge or movable partitions) means that they can be used universally.

4. A special silicon seal ensure complete tightness against water access or the smallest dust particles.

WT 5

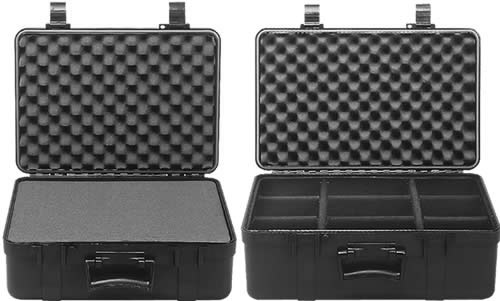

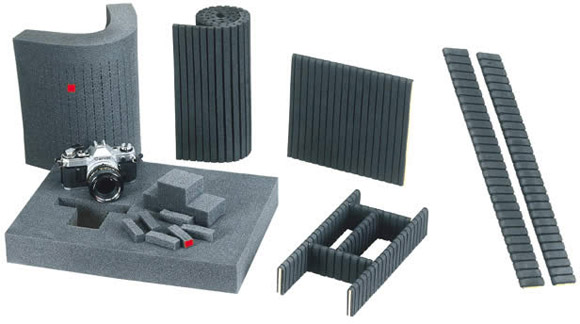

5. The raster sponge is cut in a 15x15 mm square, which can be easily detached. As a result a hole that is ideally adapted to fit the equipment, which is to be put in it, is achieved. The tongue-key partition (SE) can be optionally adjusted create optimum space for fitting the equipment.

WT 6

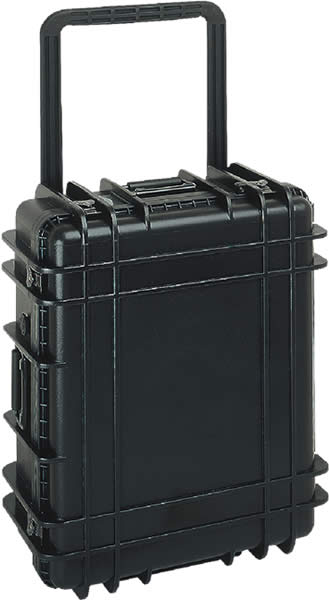

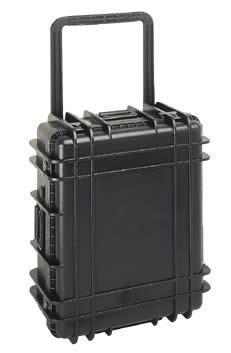

6. Tectra 827 with a trolley.

cat. no	model	dimensions [mm]								comments
		internal					external
		L	B	H	d	b	L	B	H
1239	Tectra 309	215	150	75	15	60	230	200	85	diced-foam interior
1249	Tectra 409	215	150	90	15	75	240	185	155	diced-foam interior
1269	Tectra 609	215	150	135	15	120	240	185	155	diced-foam interior
1613	Tectra 613	340	225	140	45	95	335	270	150	diced-foam interior
1416	Tectra 416	425	250	115	40	75	445	295	130	diced-foam interior
1716	Tectra 716	425	250	165	45	120	445	295	180	diced-foam interior
1916	Tectra 916	425	250	200	80	120	445	295	220	diced-foam interior
1518	Tectra 518	450	325	130	45	85	470	370	150	diced-foam interior
1718	Tectra 718	450	325	175	45	130	470	370	190	diced-foam interior
1821	Tectra 821	530	325	215	60	155	550	375	230	diced-foam interior
1822	Tectra 822 /Trolley	555	455	215	60	155	600	510	230	diced-foam interior + trolley
1827	Tectra 827 /Trolley	685	455	215	60	155	740	510	230	diced-foam interior + trolley
1825	Tectra 825	555	455	375	120	220	620	520	400	diced-foam interior

cat. no	model	dimensions [mm]								comments
		internal					external
		L	B	H	d	b	L	B	H
1643	Tectra 613 SE	330	215	140	45	95	355	270	150	adjustable partition system
1446	Tectra 416 SE	420	240	115	40	75	445	295	130	adjustable partition system
1746	Tectra 716 SE	420	240	165	45	120	445	295	180	adjustable partition system
1946	Tectra 916 SE	420	240	200	80	120	445	295	220	adjustable partition system
1548	Tectra 518 SE	440	315	130	45	85	470	370	150	adjustable partition system
1748	Tectra 718 SE	440	315	175	45	130	470	370	190	adjustable partition system
1841	Tectra 821 SE	520	315	215	60	155	550	375	230	adjustable partition system
1848	Tectra 822 SE/ Trolley	545	445	215	60	155	600	510	230	adjustable partition system + trolley
1857	Tectra 827 SE/ Trolley	675	445	215	60	155	740	510	230	adjustable partition system + trolley

cat. no	model	dimensions [mm]								comments
		internal					external
		L	B	H	d	b	L	B	H
1901	Tectra ECO I	425	300	185	50	135	485	365	210	diced-foam interior
1902	Tectra ECO II	465	355	205	55	150	530	420	230	diced-foam interior
1911	Tectra ECO I SE	405	280	185	50	135	485	365	210	adjustable partition system
1912	Tectra ECO II SE	435	335	205	55	150	530	420	230	adjustable partition system
