rack flight case

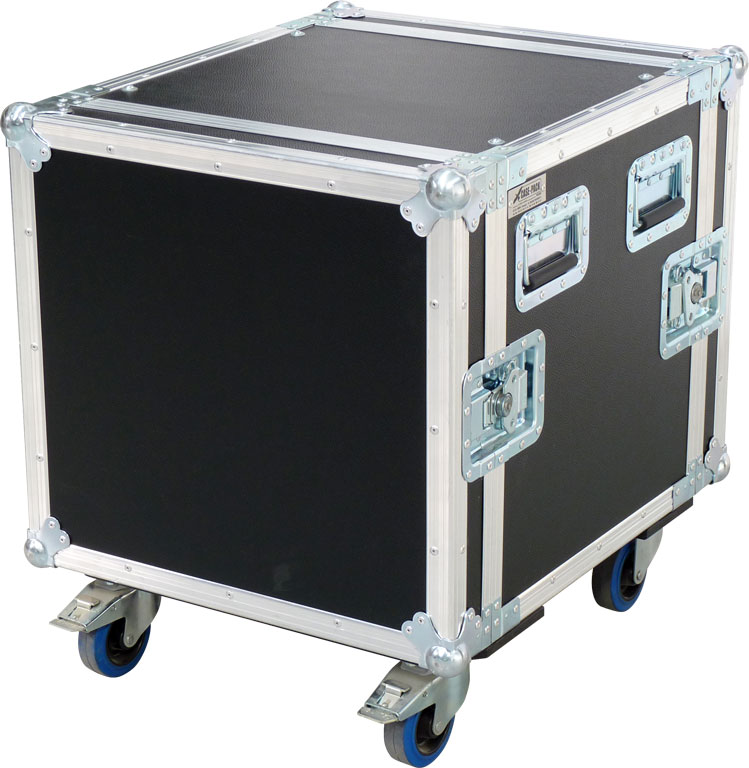

Description:
- load carrying material multiplex plate
- butterfly locks,
- recessed handles kasetowe,
- round corners,
- fixing rail in front and at back,
- effective depth (without cover) 45 cm
- offered height form 6U to 20U,
- preferred use:
heavy power ends, power devices, lighting systems,
- maximum load 70 kg (6-10U),
120 kg (11-20U), option with wheels 200 kg,
- OPTION in SAS system (Shock Absorber
System - (steel frame suspended on shock absorbers),
- OPTION with wheels of diameter 100 mm,
- fixing set
(bolt+nut+washer).



Example of marking:
HVD 4506
HVD - series, type of fittings
45 - effective depth
06 - height in units
(1U=1.75" - 44.45 mm)

rack flight case

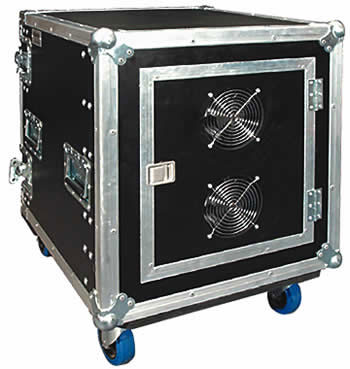

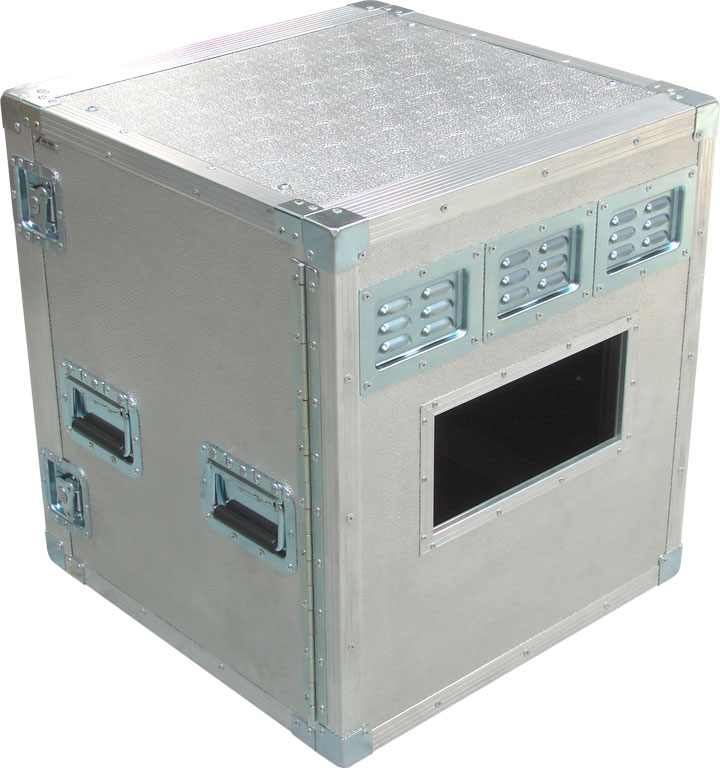

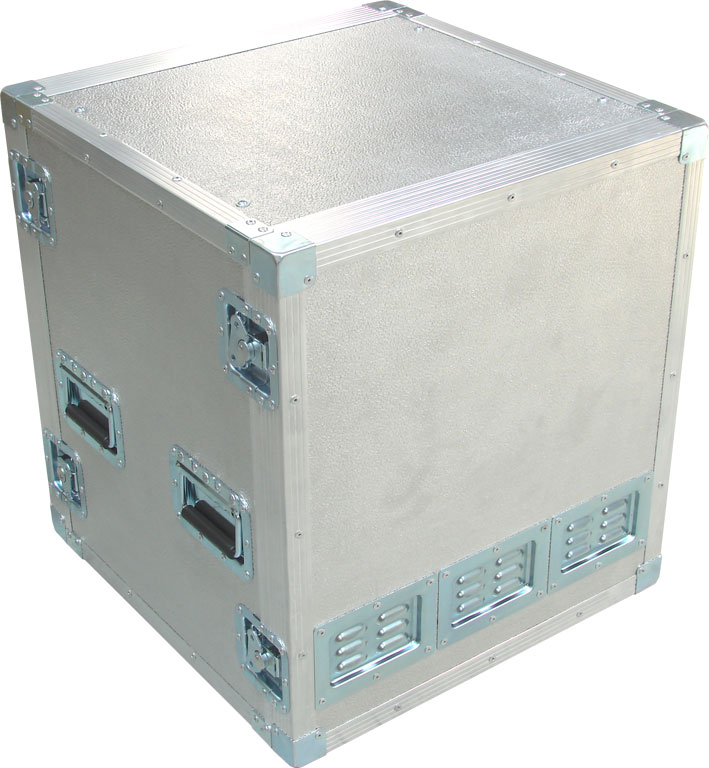

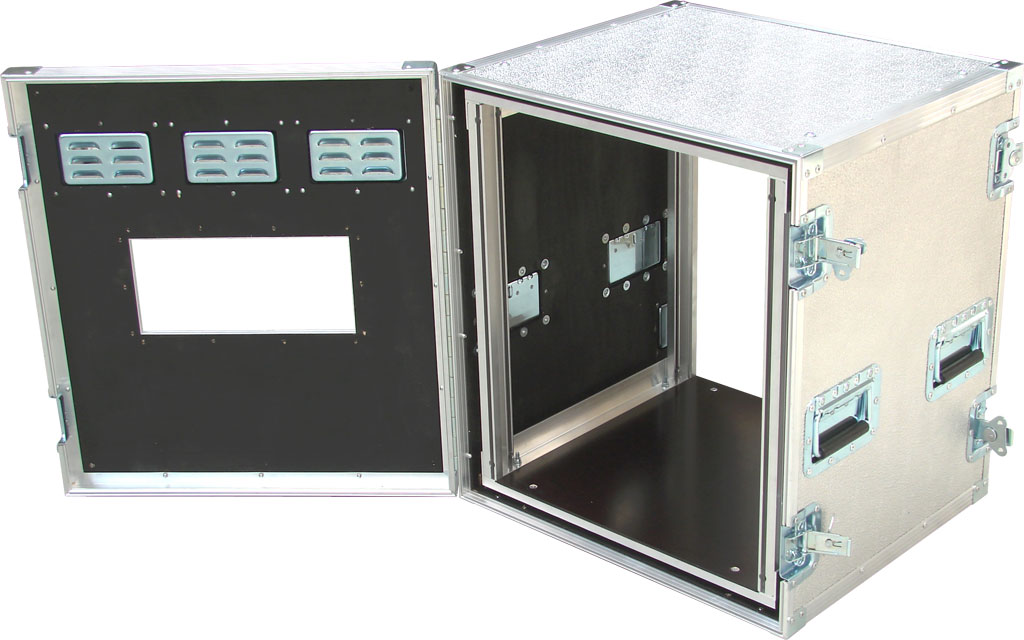

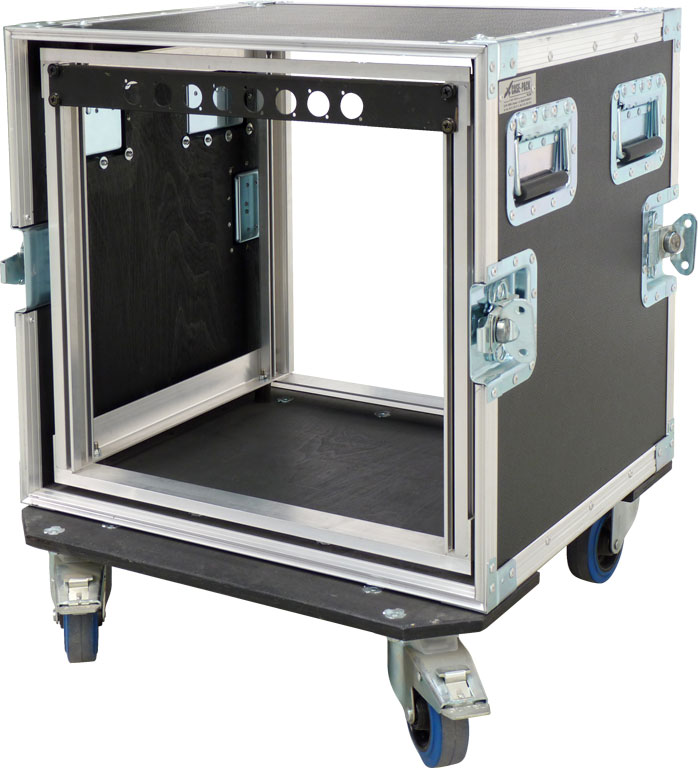

2. HVD Rack,
maintenance hatch with ventilators

rack flight case

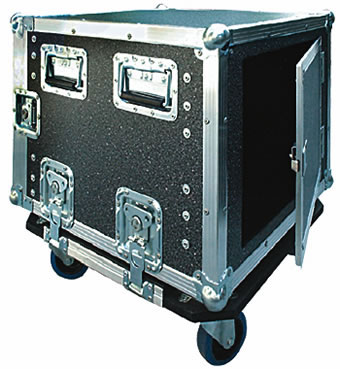

3. HVD Rack with detachable undercarriage and maintenance hatch

rack flight case

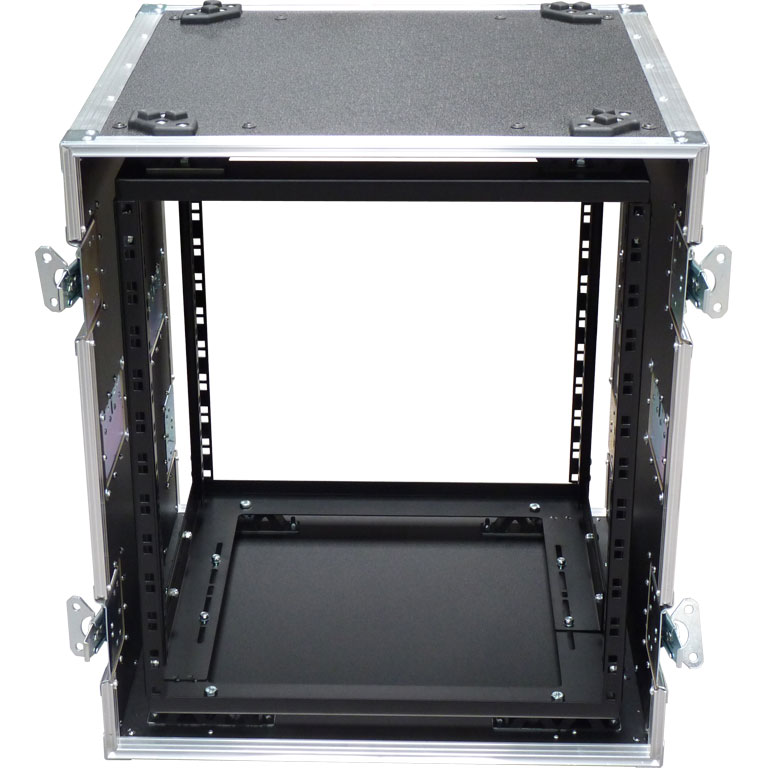

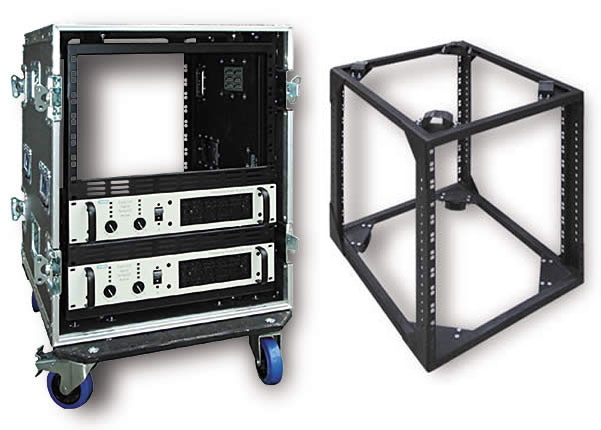

4. System SAS (Shock Absorber System) - steel frame suspended on shock absorbers.

rack flight case

5. Rack with the SAS system. One hinged lid. Flat corners.

rack flight case

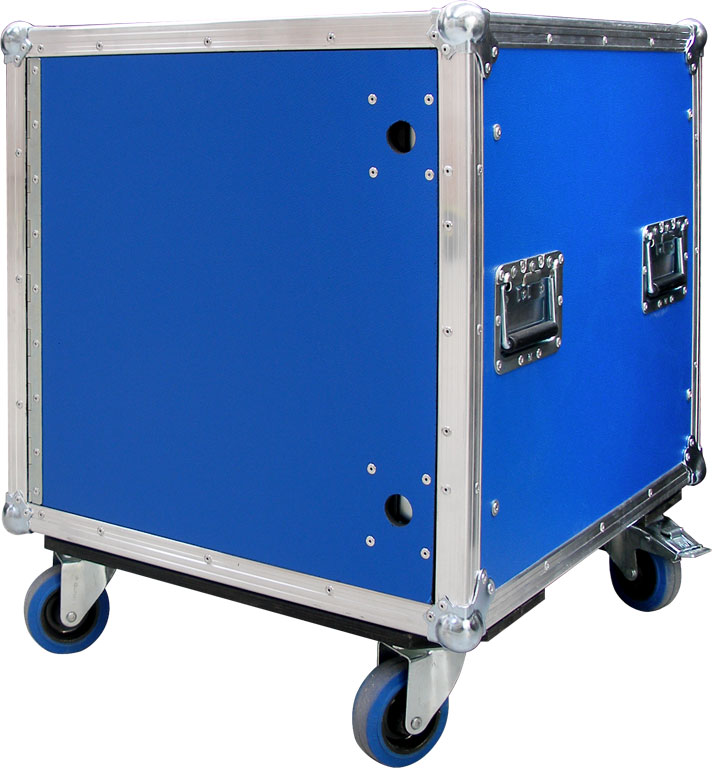

6. Rack with the SAS system. Slip covers into the body.

rack flight case

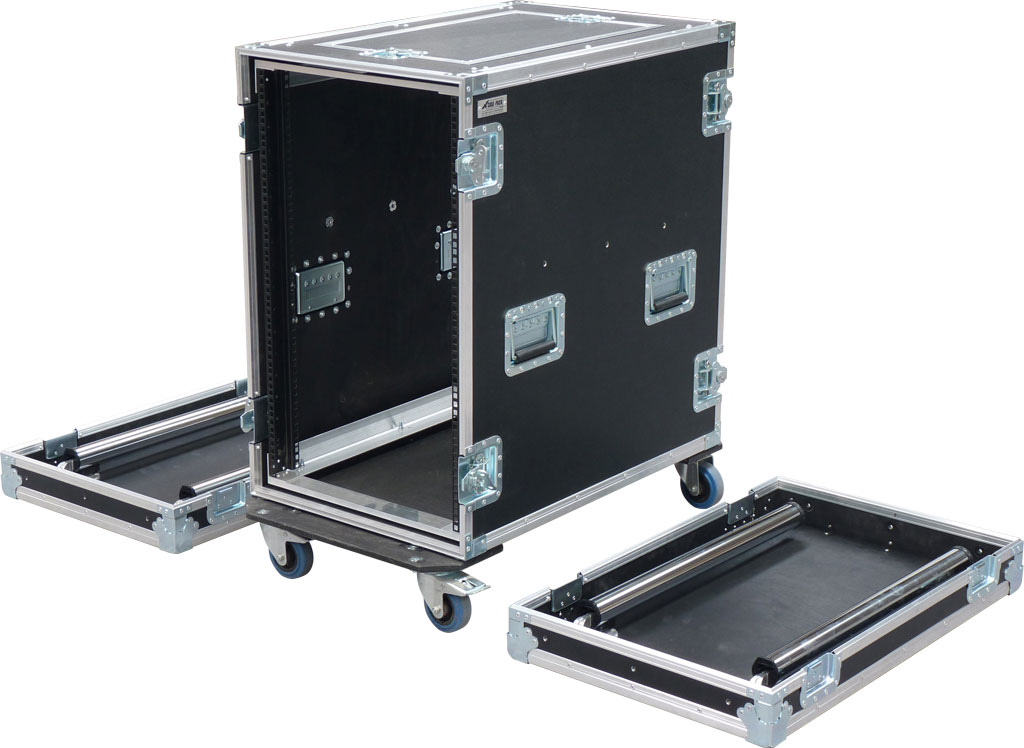

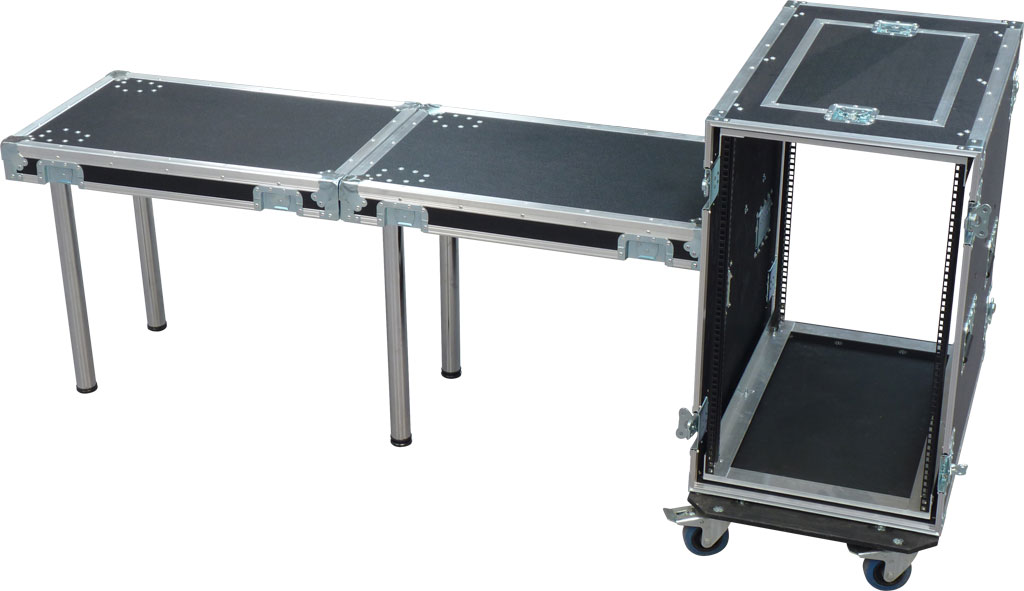

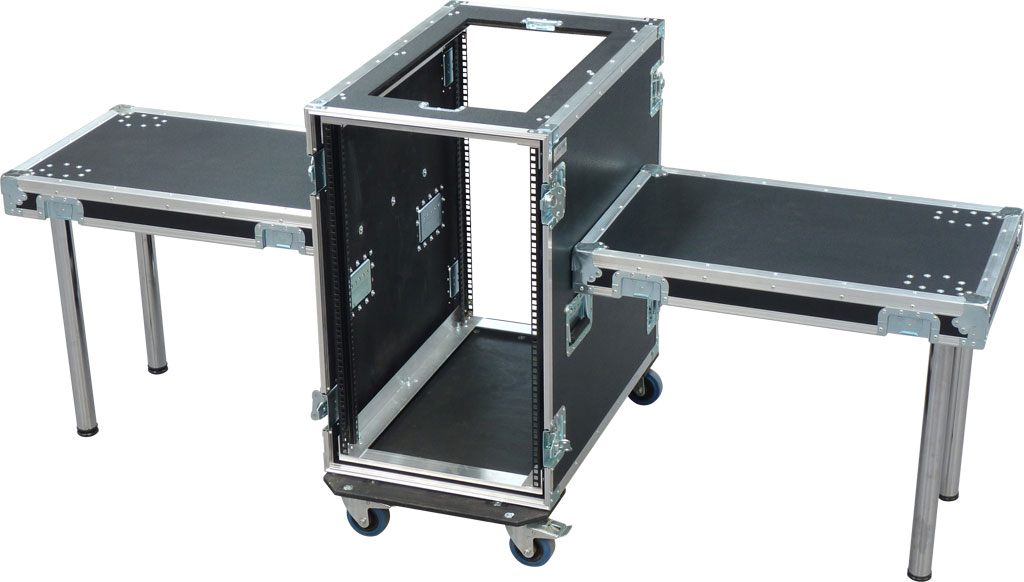

7. Rack with the SAS system. Covers with folding legs with mounting as worktops.

rack flight case

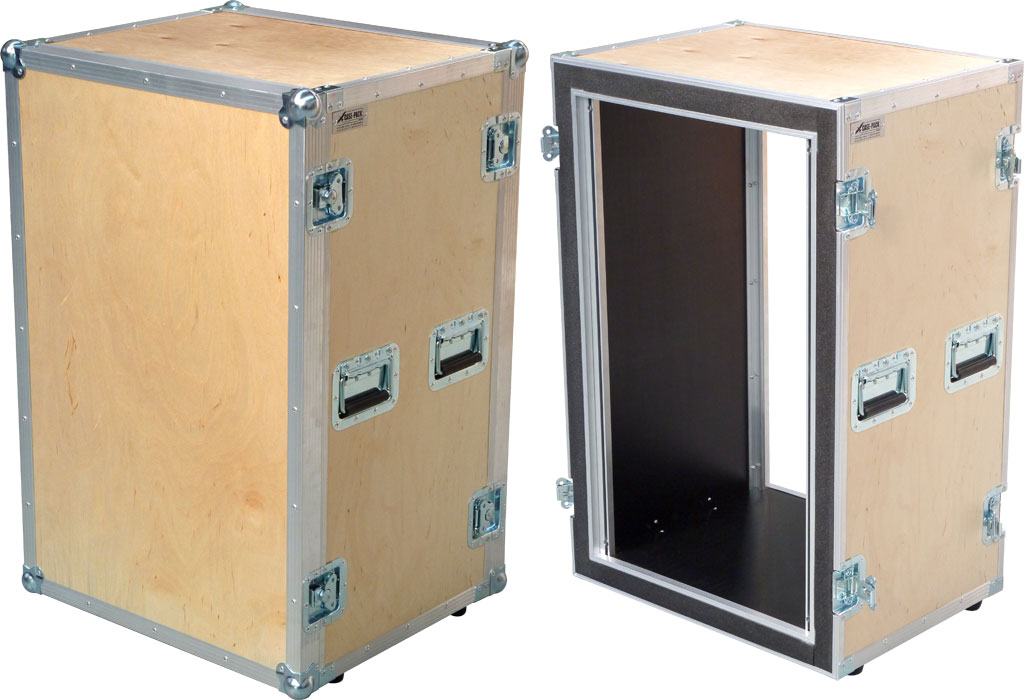

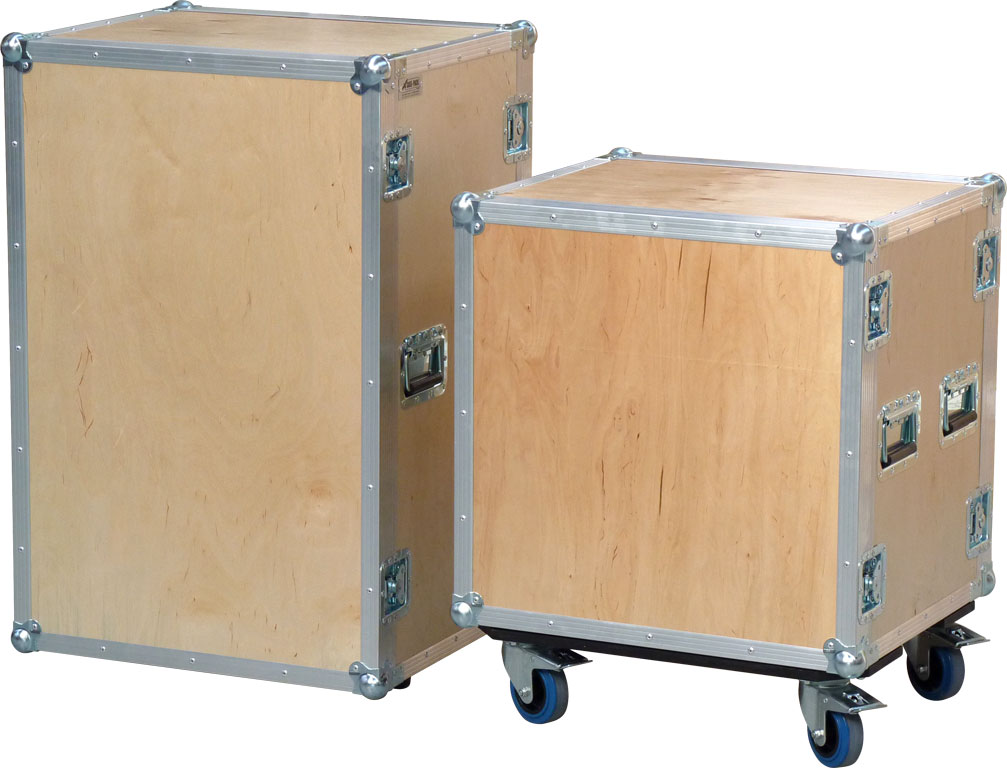

8. Rack with the SAS system. Frame in shock absorbing foam. Surface of plywood painted PU lacquer.

rack flight case

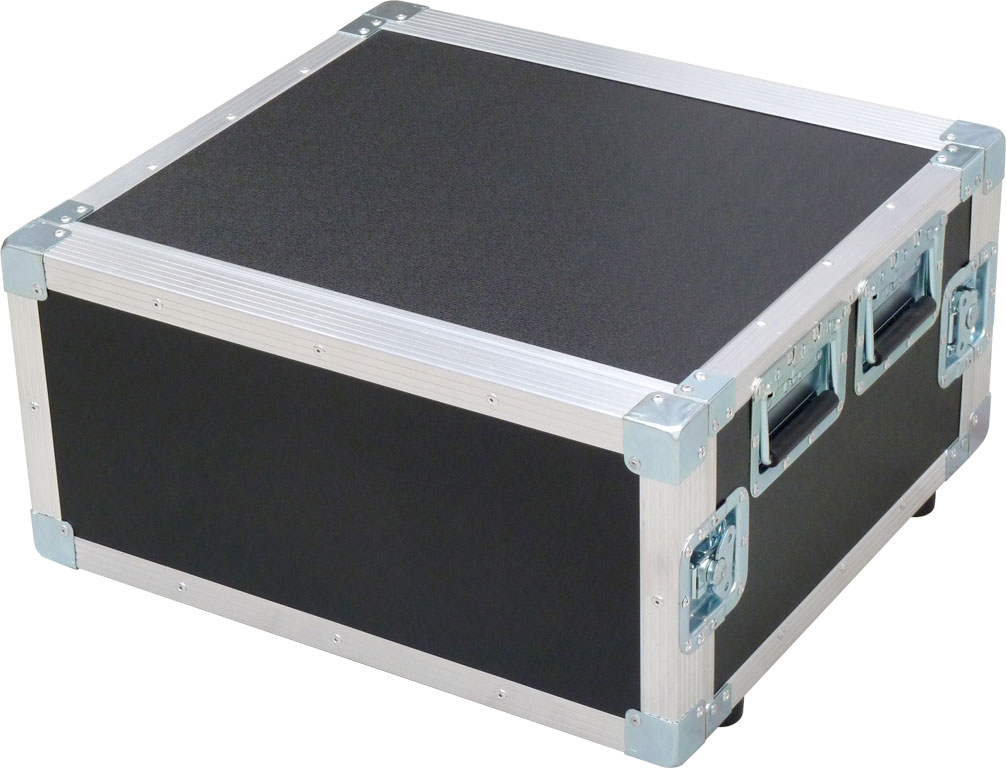

9. Rack 4U with the SAS system. Frame in shock absorbing foam. Flat corners.

Rack 10U QSD

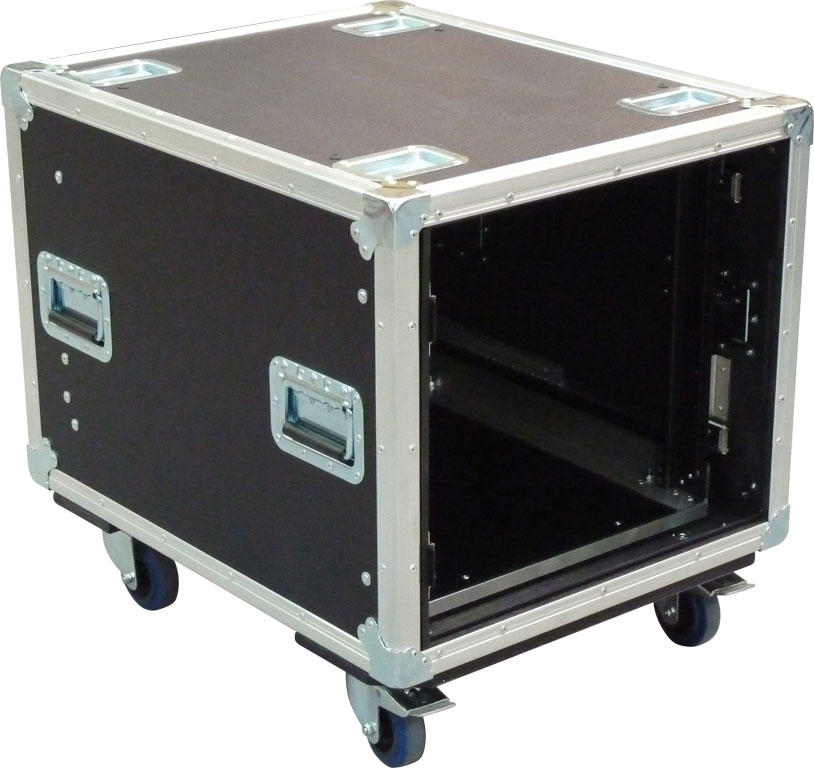

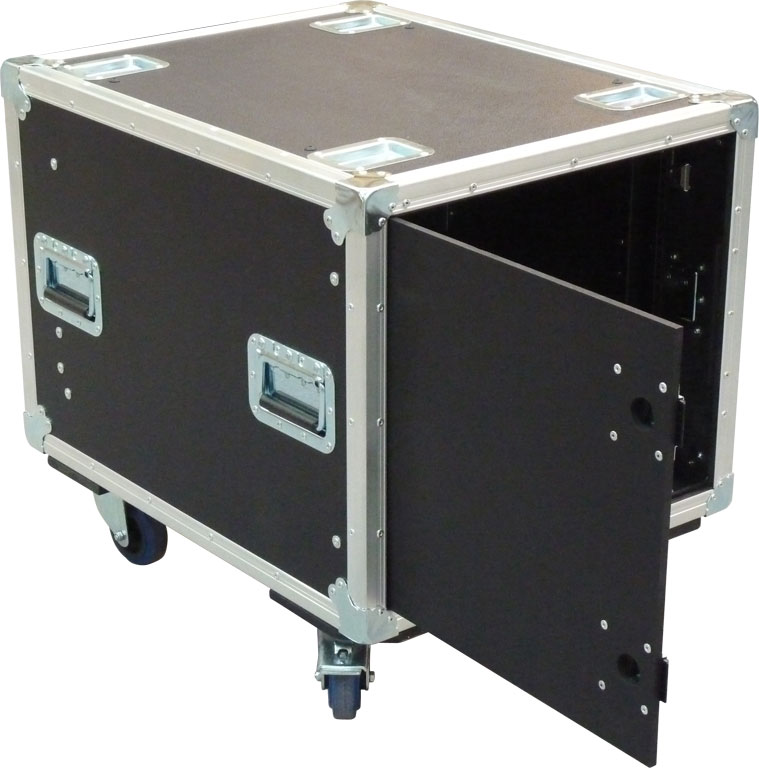

10. Rack 10U QSD SAS. Flat corners. Wheels Ø100 mm, stackable.

rack flight case

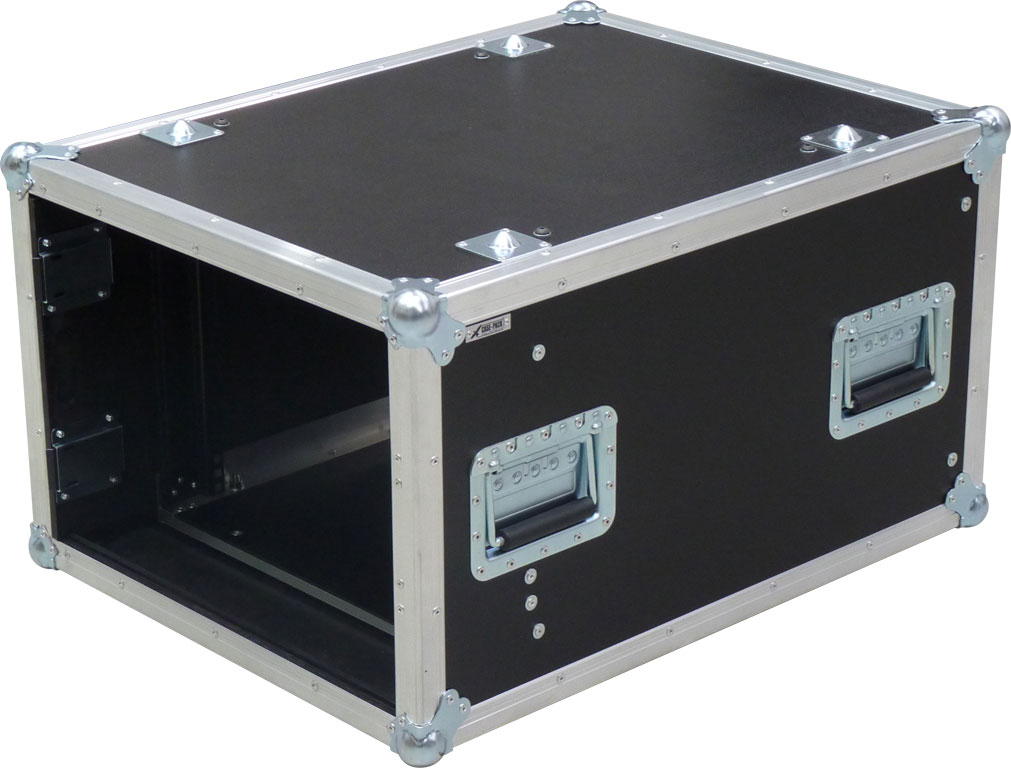

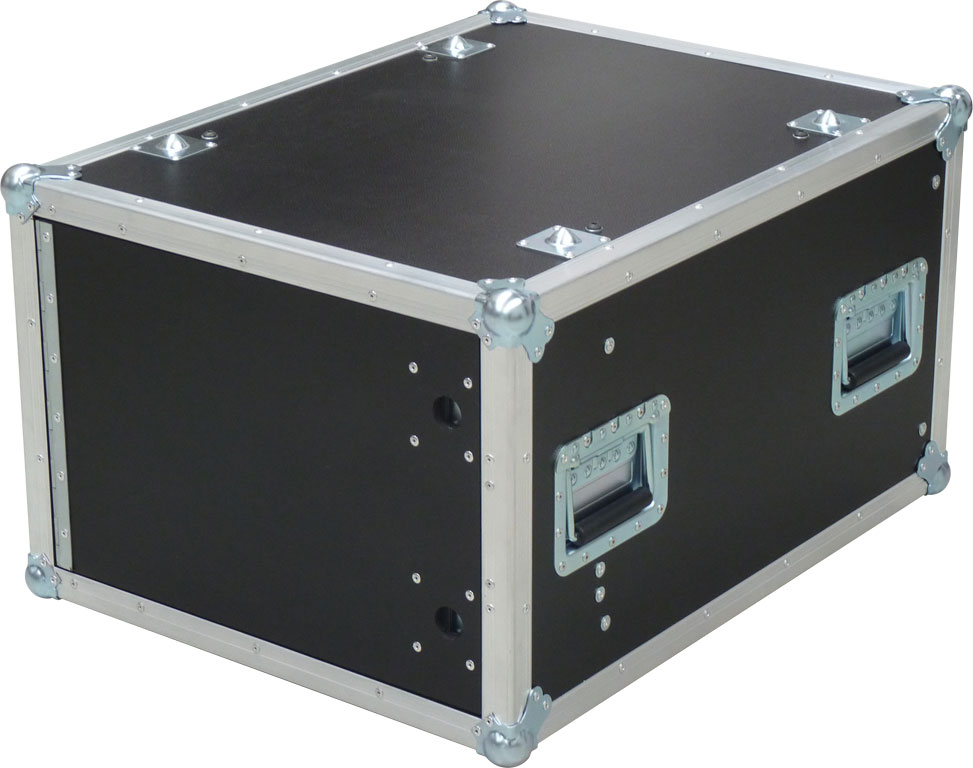

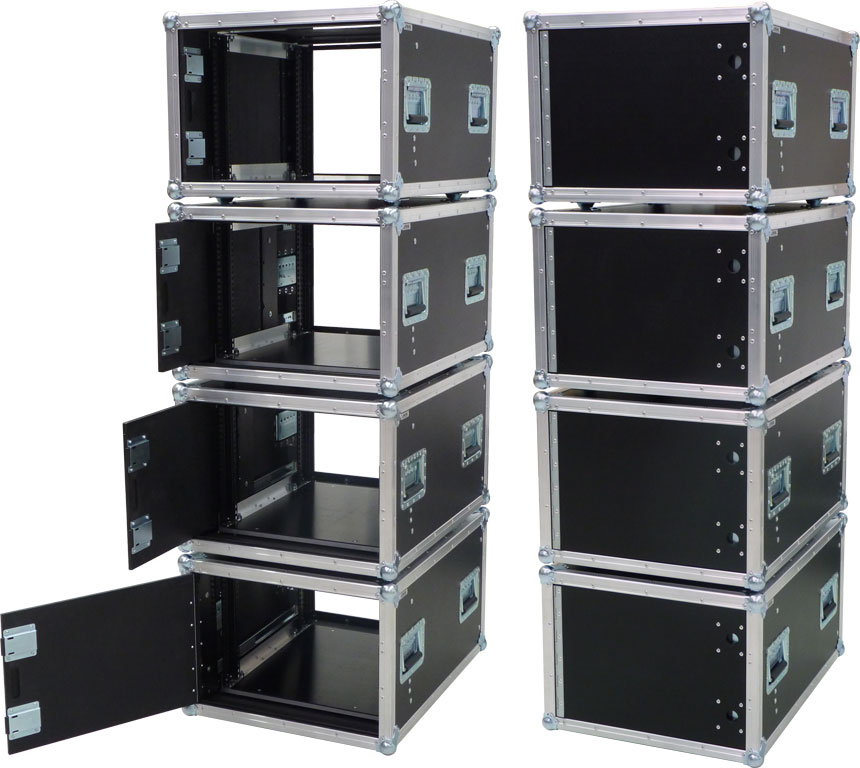

11. Rack 8U QSD SAS. Flat corners. Stackable.

rack flight case

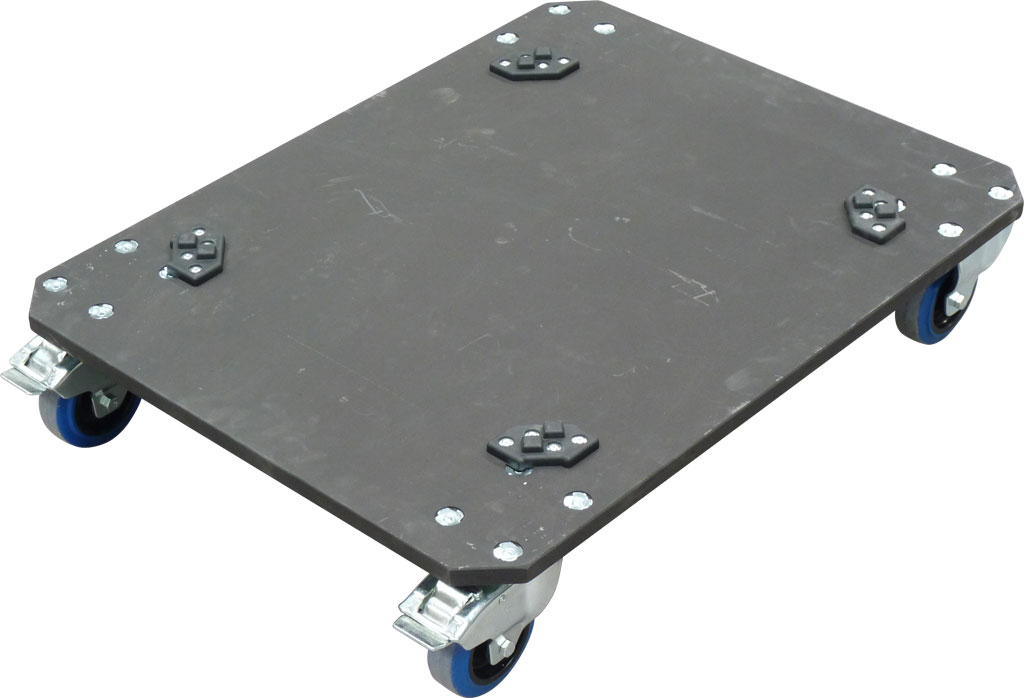

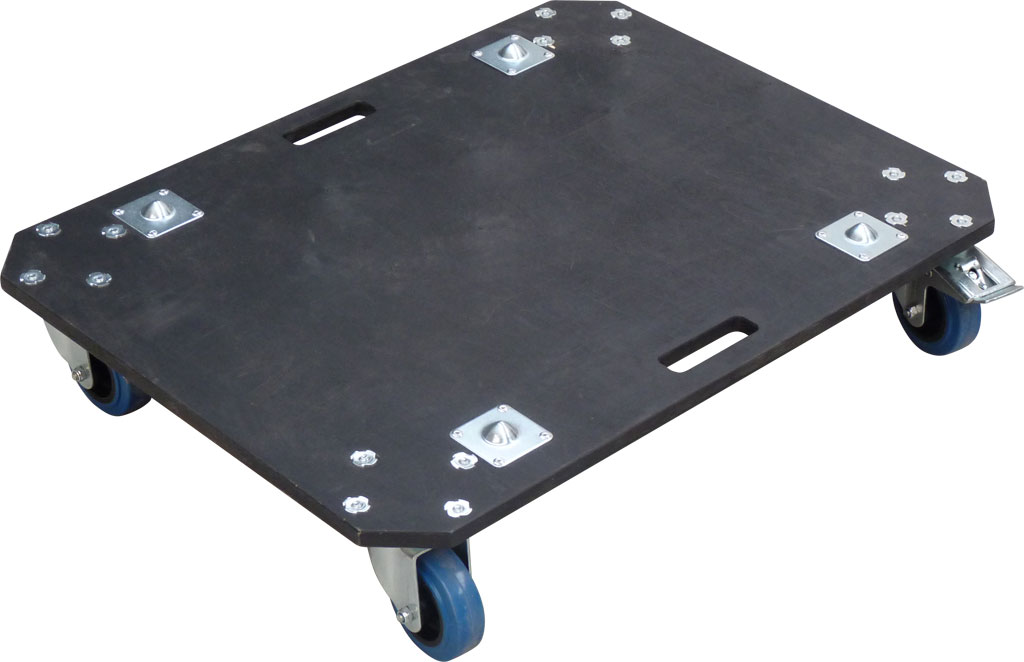

12. Platform of the chassis for RACKs (11).

rack flight case

13. Rack 4510 HVD SAS. Alu frame.

rack flight case

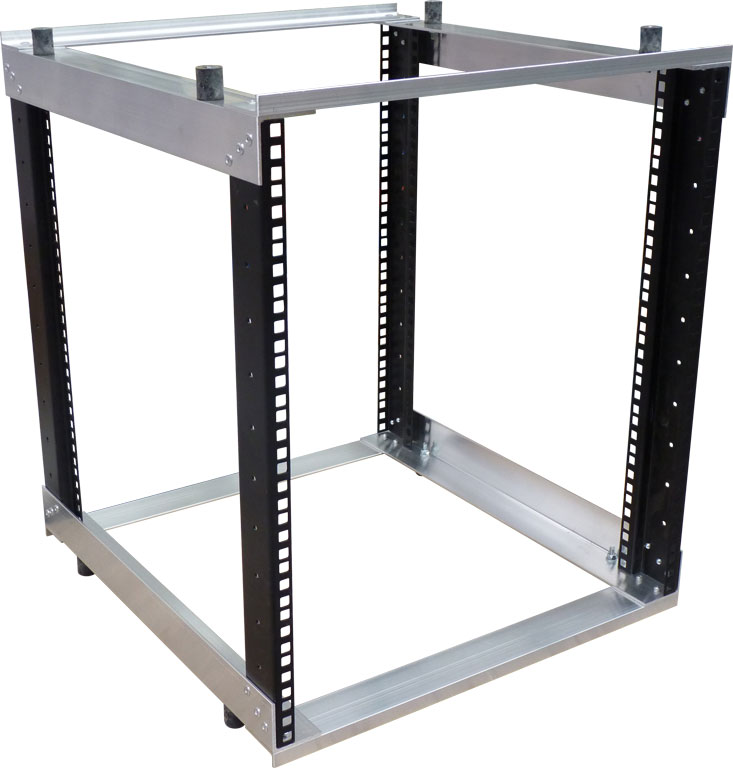

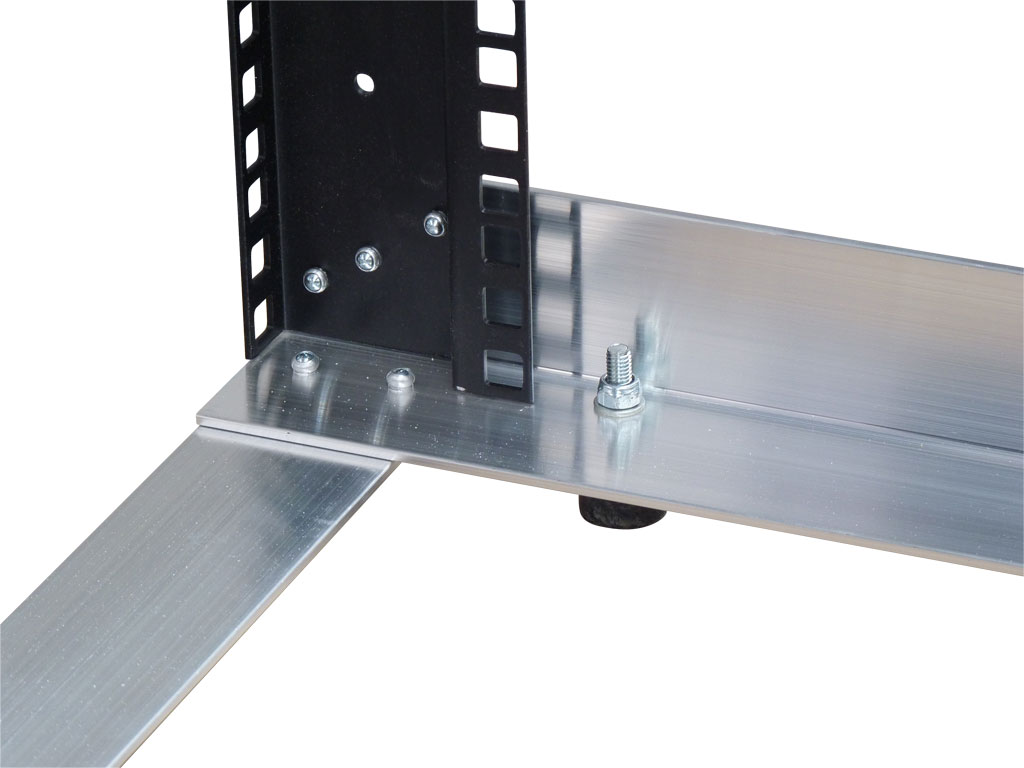

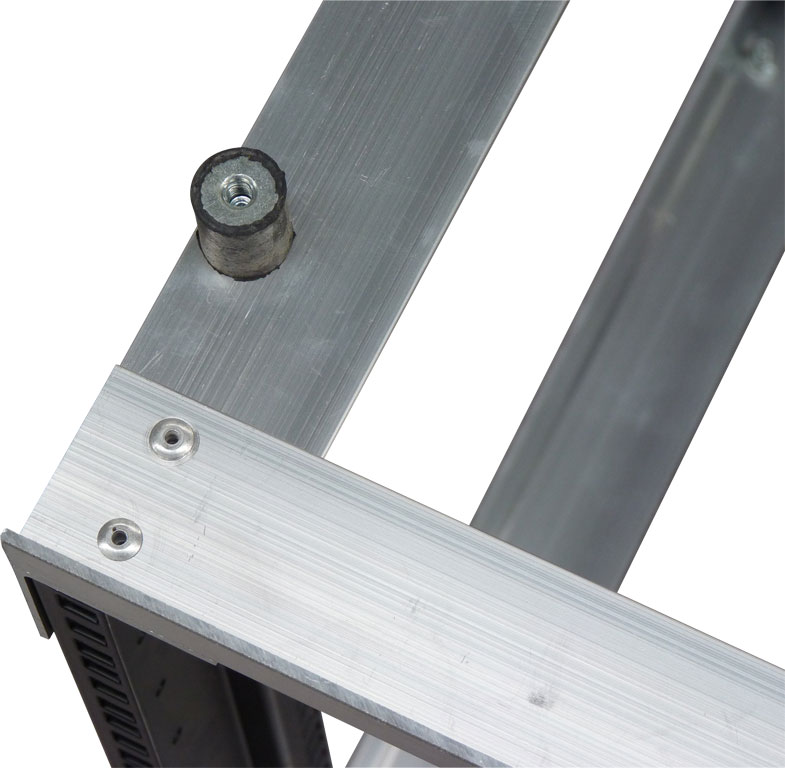

14. Steel-alu frame with SAS.

rack flight case

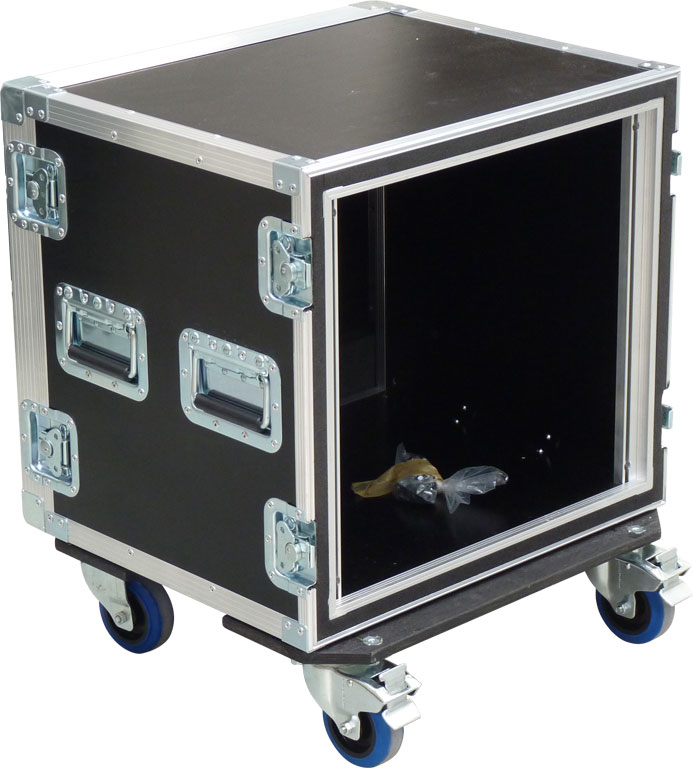

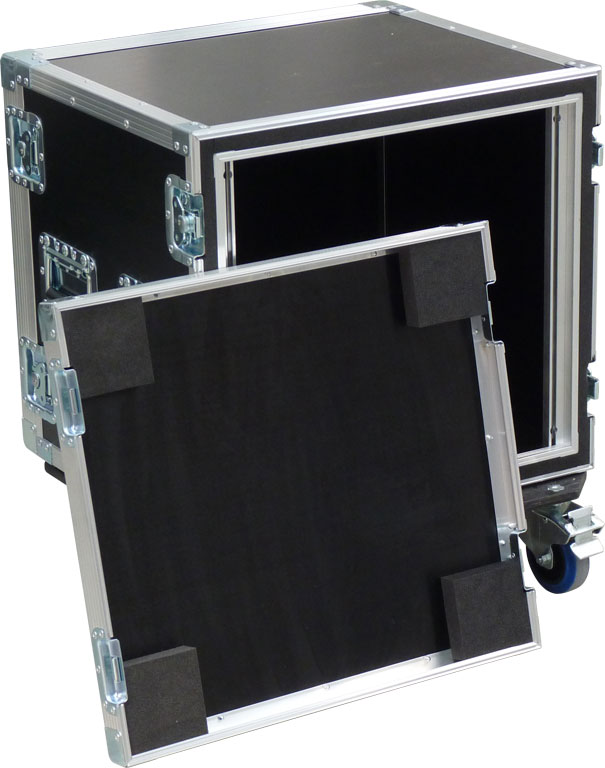

15. Rack 10U with the SAS system. Frame in shock absorbing foam. Flat corners.

rack 10U no lid

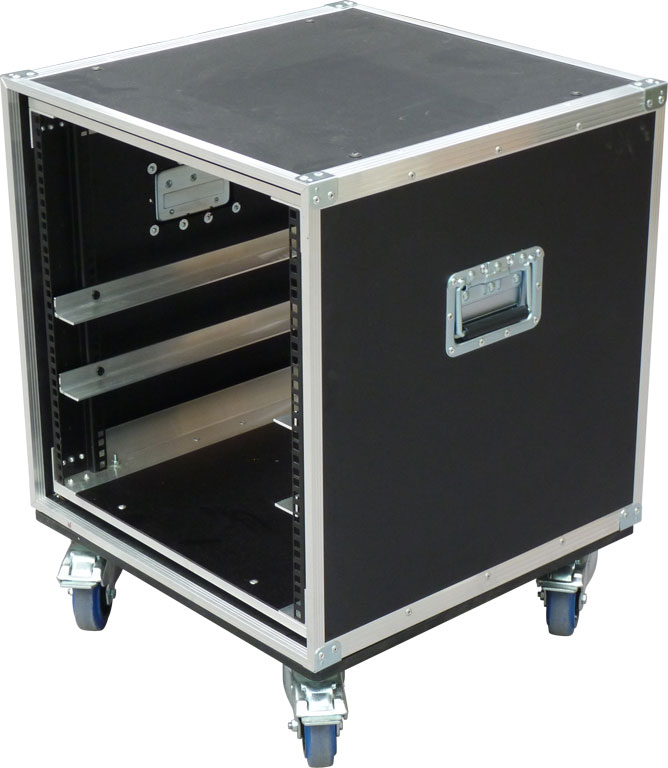

16. Special rack 10U with SAS, no lids. Frame suspended on shock absorbers.

rack HVD3518SAS

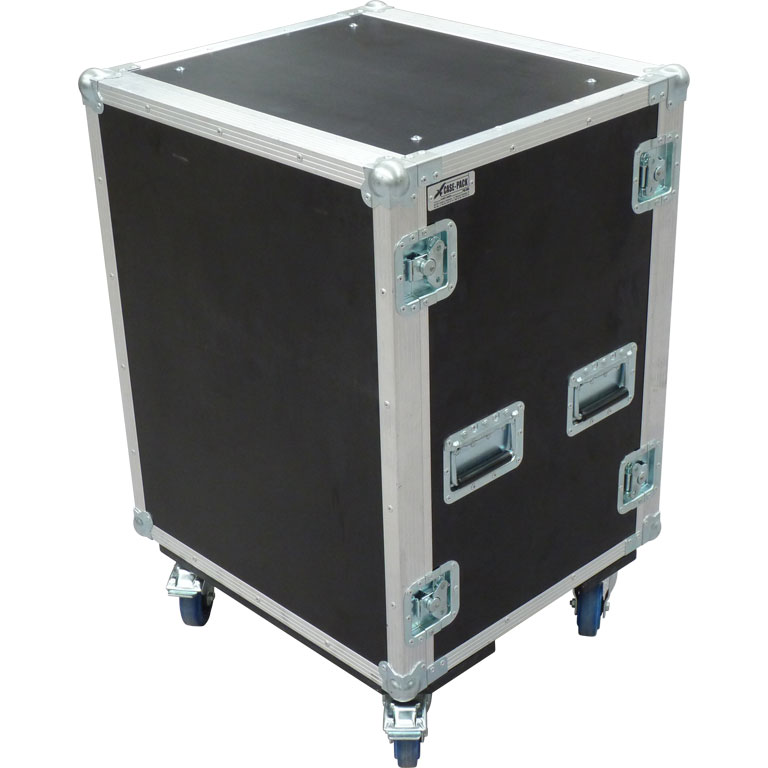

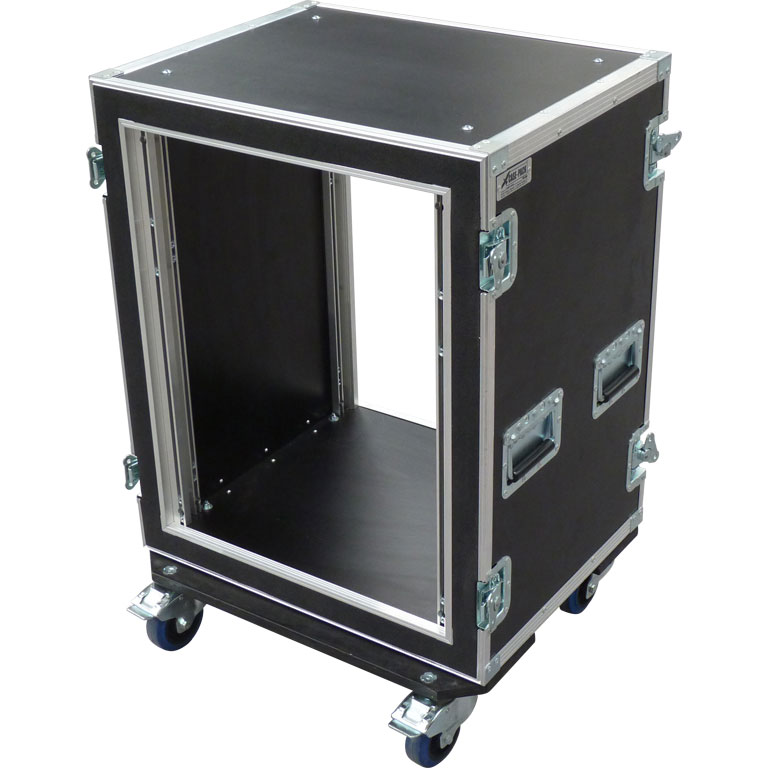

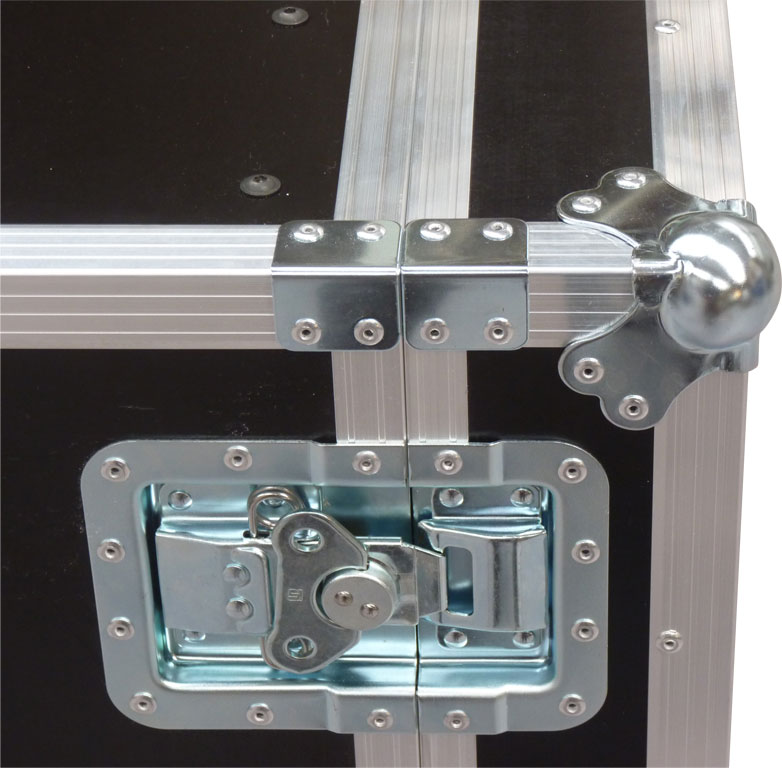

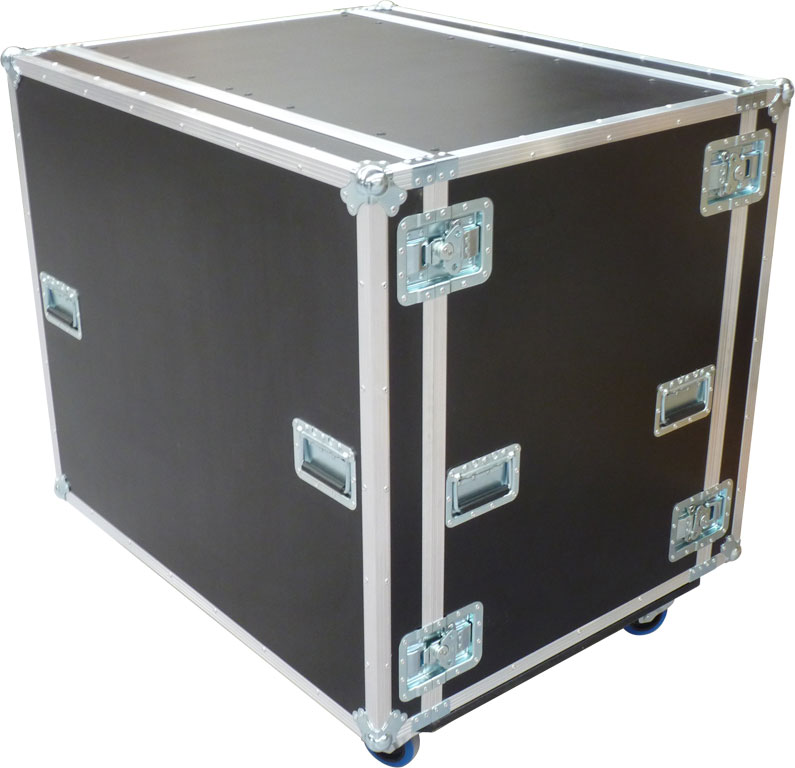

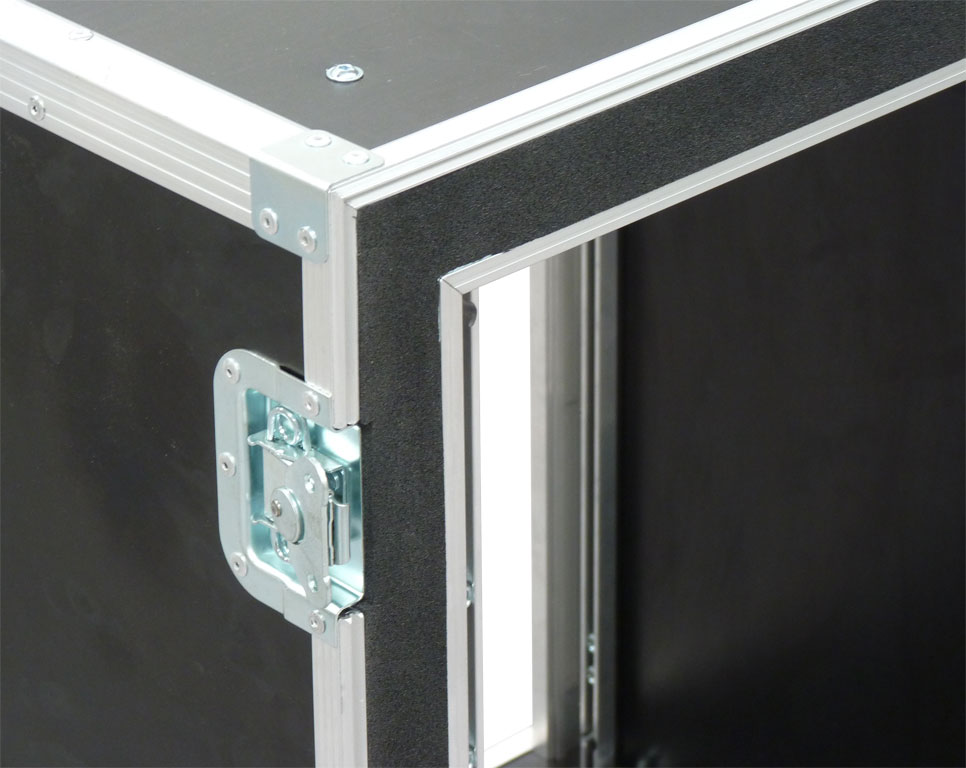

17. Rack HVD3518-SAS. Frame suspended on shock absorbers with additional foam. Ball corners.

rack HVD5020×2SAS

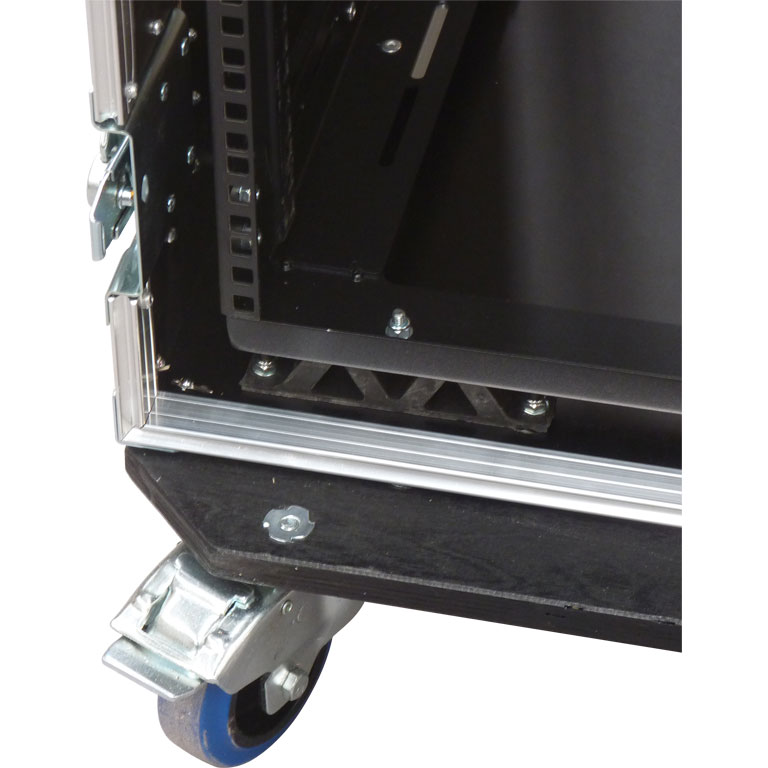

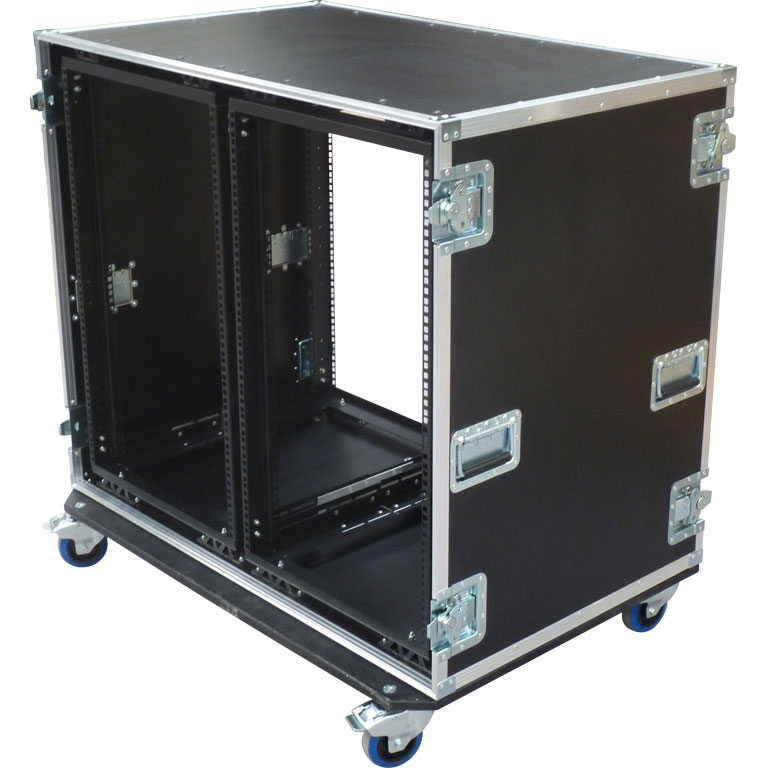

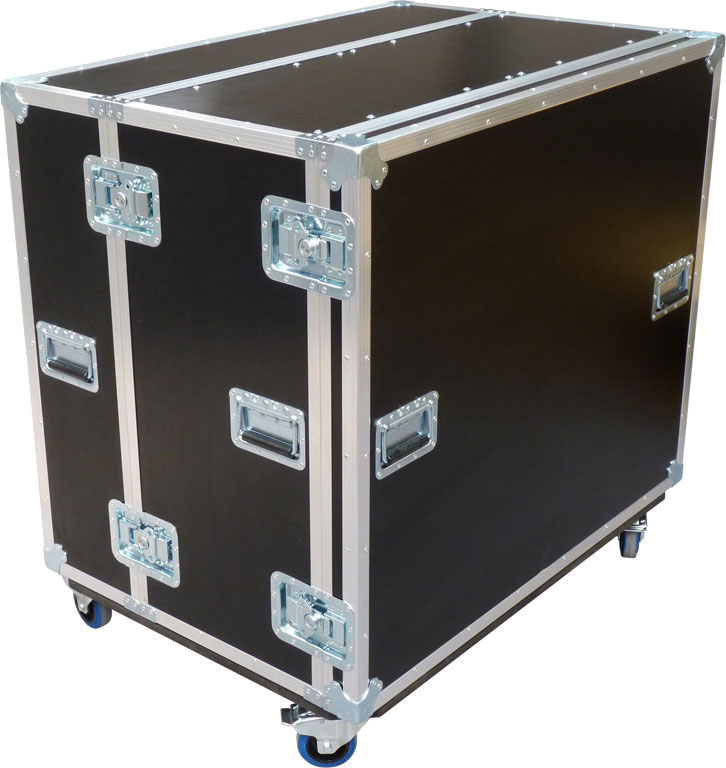

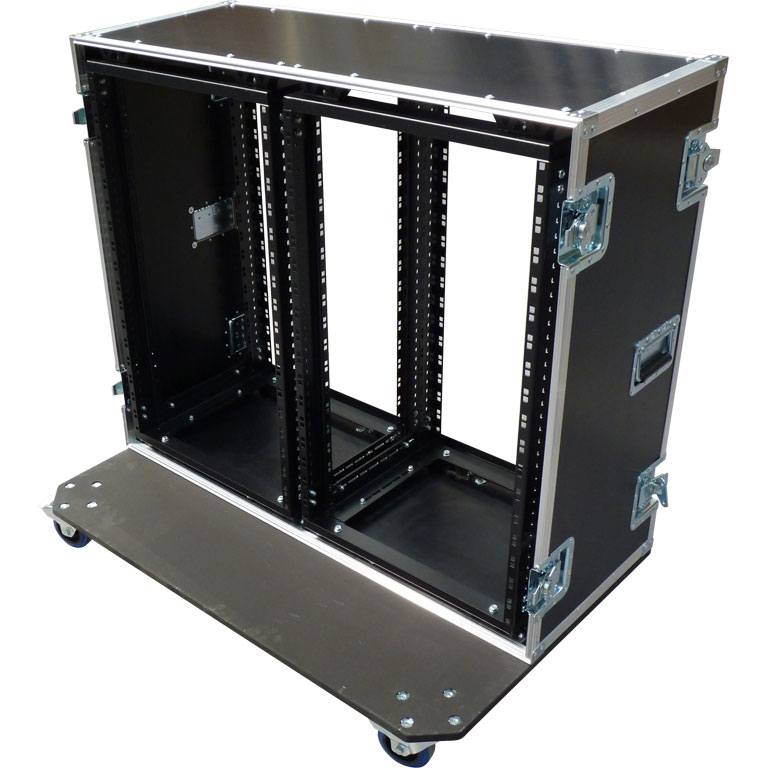

18. Rack HVD5020×2SAS. Double frames suspended on shock absorbers. Ball corners.

rack HVD4318×2SAS

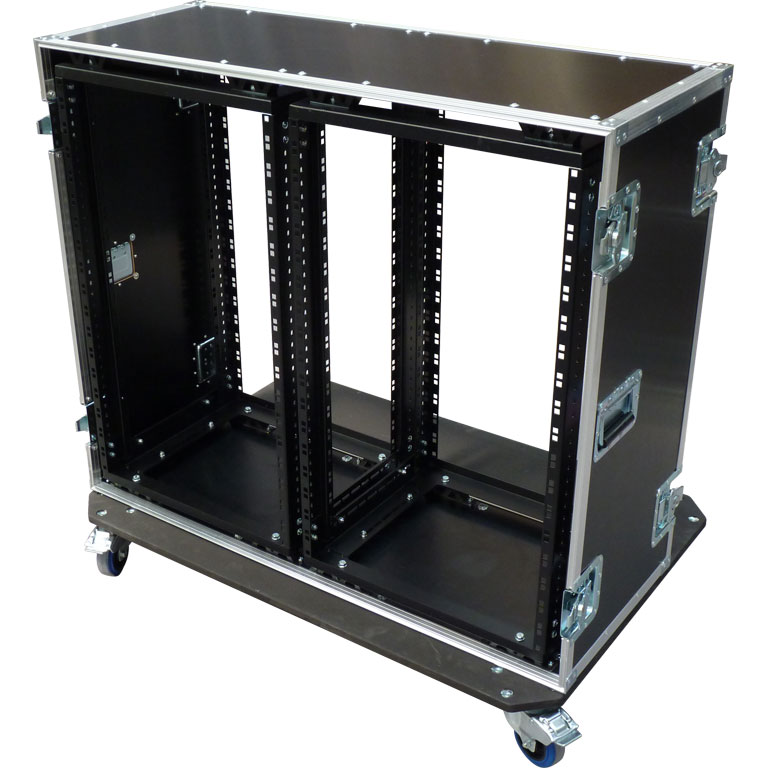

19. Rack HVD4318×2SAS. Double frames suspended on shock absorbers. Flat corners.

rack HVD5012SAS

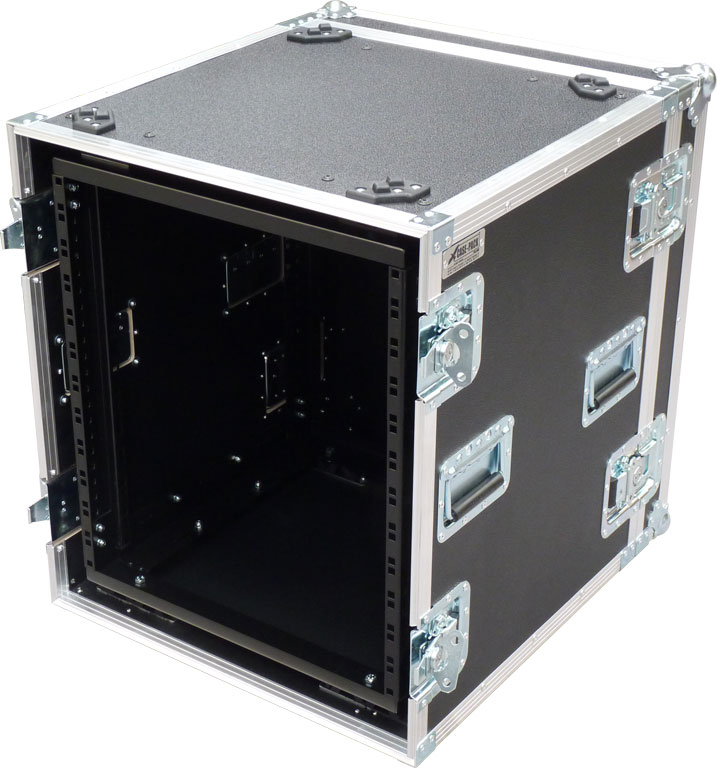

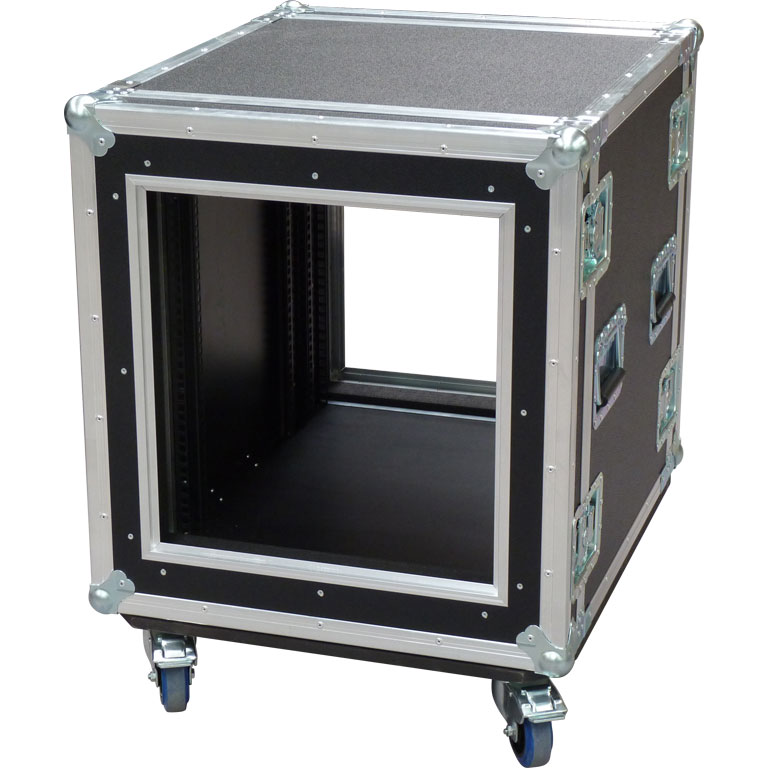

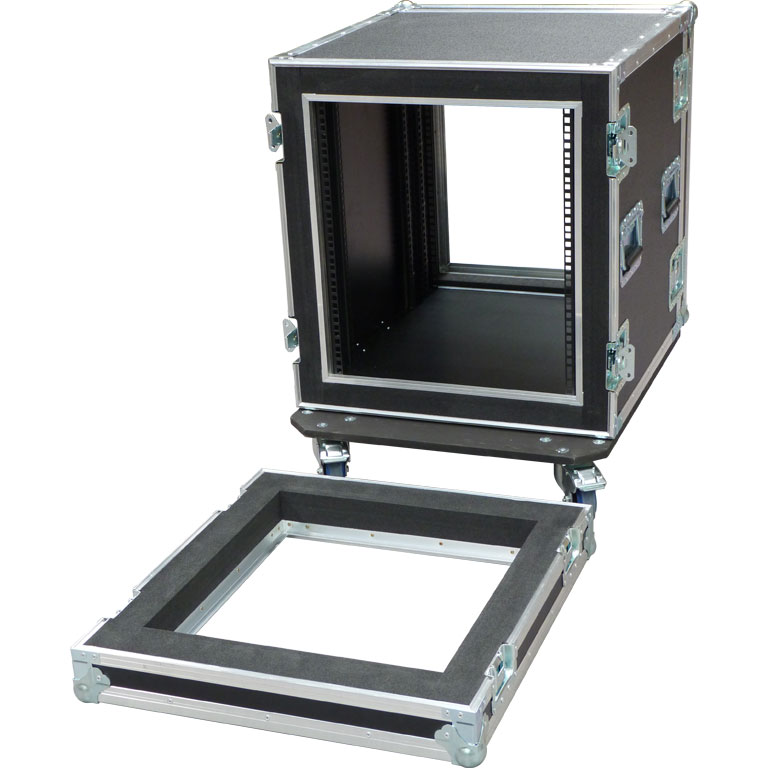

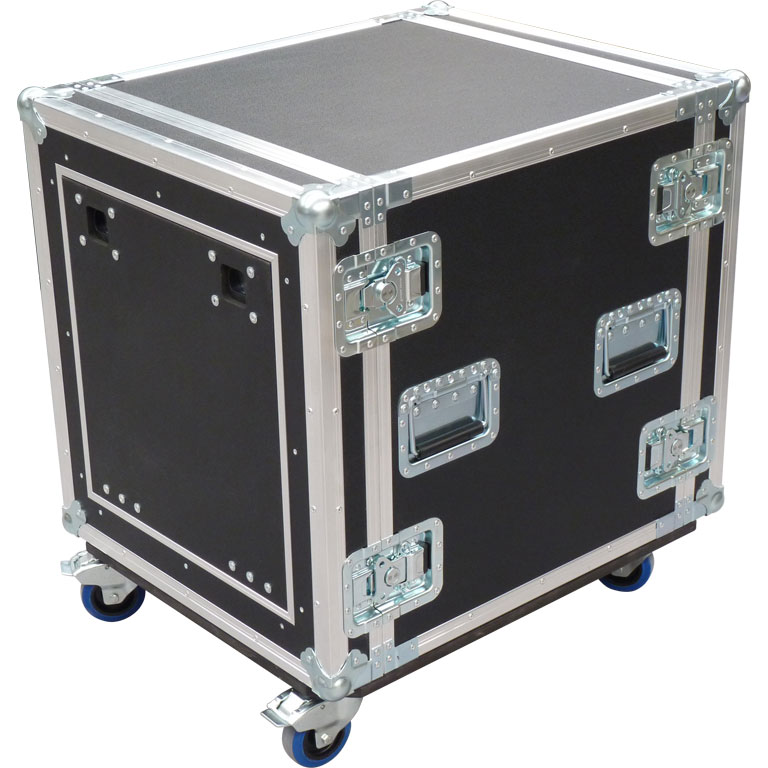

20. Rack HVD5012SAS. Frame in shock absorbing foam. Ball corners. Additional flaps in the covers.

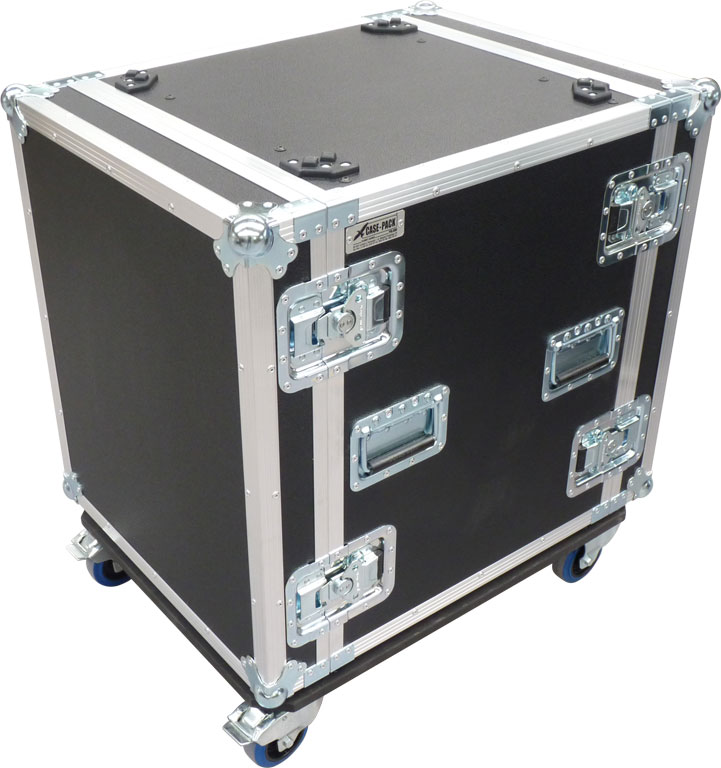

rack HVD5012SAS

21. Rack HVD5012SAS. Frame suspended on shock absorbers. Ball corners. Stackable.

open
closed
closed
closed
open
closed
half open
open
animated
closed
open
open - worktops on one side
open - worktops on both sides
set
closed
open
closed & open
open
open
closed
closed
open
open
detail
closed
open
open
detail
platform
closed
open
detail
frame
detail
detail
open
open
closed
open
open
open
closed
detail
open
closed
detail
detail
open
open
closed
closed
closed
open
open
open
open
open
closed
stack
platform
